Our technology leverages the intrinsic relationship between ferromagnetic materials' magnetic properties and their microstructure, residual stress, and mechanical characteristics. This enables quantitative nondestructive testing of mechanical properties/residual stress alongside microstructure uniformity assessment.
| Parameter | Specification |
| Magnetization Voltage Range | 1V ~ 20V |
| Magnetization Frequency Range | 50Hz ~ 500Hz |
| MBN Signal Gain | -20 ~ 60dB |
| MBN Signal Filter Range | 10kHz ~ 450kHz |
| Signal Sampling Rate | 2MS/s |
| Testing Repetition Frequency | 5Hz ~ 50Hz |
| Channel Quantity | 1 (Customizable) |
| Capabilities | Multi-parameter magnetic characterization (MBN, tangential field, incremental permeability, multi-frequency ECT, main flux) for R&D; |
| Non-destructive quantitative evaluation of mechanical properties (surface hardness, yield strength, elongation, impact energy) and residual stress in steel plates/components | |
| Standard Configuration | Main unit (with software), Sensors |
1. 100% In-House Engineered Technology
Our fully self-developed systems and processes deliver uncompromised control and optimization.
2. Tailored Automation Solutions

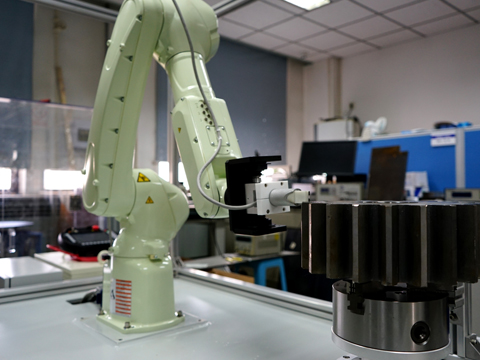

Customizable software, specialized probes, and bespoke robotic systems enable complete inspection automation.
3. Zero-Blind-Spot Guarantee
Achieves 100% material coverage scanning with undetectable flaw assurance.
4. Streamlined Operation
Single-command inspection control enables instant start/stop functionality.
Expert Support, Customized Solutions, Go above and beyond: Welcome to NCS's World of Non-Destructive Testing.
