Phased Array Ultrasonic Testing (PAUT) Equipment

High-Performance PAUT Equipment for Different Industrial Components

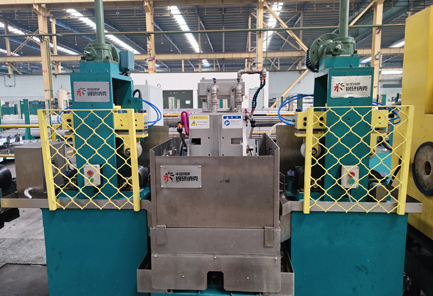

Phased Array UT System of Pipes/Bars

Phased Array UT System of Plates/Strips

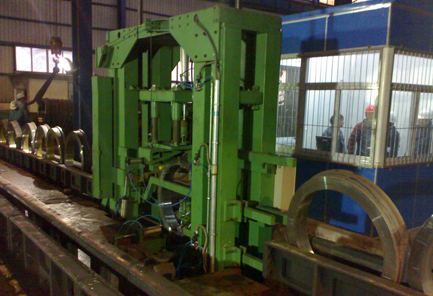

Phased Array UT System of Wheels/Rings

Comparison of Our PAUT Equipment

NCS develops phased array UT equipment for different workpiece types and inspection requirements. Each system can be configured according to material, size range, inspection speed, probe arrangement, signal processing method and reporting needs.

PAUT Equipment Type	Suitable Components	Main Inspection Focus	Typical Application
Phased Array UT System for Pipes and Bars	Steel pipes, copper tubes, titanium tubes, alloy bars, rods	Longitudinal defects, transverse defects, delamination, wall thickness variation	Pipe mills, bar production lines, metal processing plants
Phased Array UT System for Plates and Strips	Steel plates, copper strips, titanium plates, alloy strips	Internal flaws, surface-related defects, delamination, thickness measurement	Plate manufacturing, strip processing, metal sheet inspection
Phased Array UT Equipment for Wheels and Rings	Railway wheels, rings, bearings, gears, shafts, forged parts	Porosity, planar defects, delamination, internal cracks	Railway, forging, heavy machinery, ring component inspection

How to Choose the Right Phased Array Ultrasonic Testing Machine

Before selecting a PAUT system, it is recommended to confirm the following information:

Selection Factor	What Buyers Should Confirm
Component type	Pipe, bar, plate, strip, wheel, ring or other part
Material	Steel, copper, titanium, aluminum, alloy or forged material
Size range	Diameter, width, thickness, length or ring size
Defect type	Crack, delamination, porosity, planar defect, wall thickness change
Inspection speed	Offline inspection or production-line speed requirement
Inspection standard	Customer standard, industry standard or project-specific acceptance criteria
Automation level	Manual loading, semi-automatic inspection or fully automated line
Data requirement	Real-time alarm, image storage, defect marking, report generation
Site condition	Available space, power supply, water coupling condition and layout

If your inspection requirements are complex, customized phased array UT equipment may be more suitable than a standard portable solution. NCS can evaluate the component geometry, inspection target and production conditions before recommending the right PAUT equipment configuration.

Key Challenges in NDT That Our PAUT Systems Solve

Slow Inspection Speed: Manual UT requires multiple scans. PAUT uses electronic scanning for rapid, full-volume coverage, drastically cutting inspection time.

Limited Data & Reliability: Conventional UT offers simple A-scans prone to missed flaws. PAUT provides rich, visual data (S-scans, C-scans) for superior defect characterization and permanent records.

Complex Component Access: Inspecting complex geometries with standard probes is difficult. PAUT's beam steering and focusing enable inspections in confined spaces and on challenging profiles.

Industry Applications: Where Our PAUT Technology Excels

Our PAUT systems deliver unmatched precision for critical inspections across industries. They excel in weld inspection for pipelines and pressure vessels, ensuring structural integrity. In aerospace and energy, they accurately assess composite components for delamination and defects. The technology is vital for corrosion mapping on tanks and pipes, quantifying wall thickness loss. Additionally, PAUT is the preferred method for inspecting complex geometries like forgings, castings, and railroad axles.

Whether used as a fixed system or as a portable phased array ultrasonic testing machine on the production line, NCS PAUT solutions adapt to your specific inspection environment.
