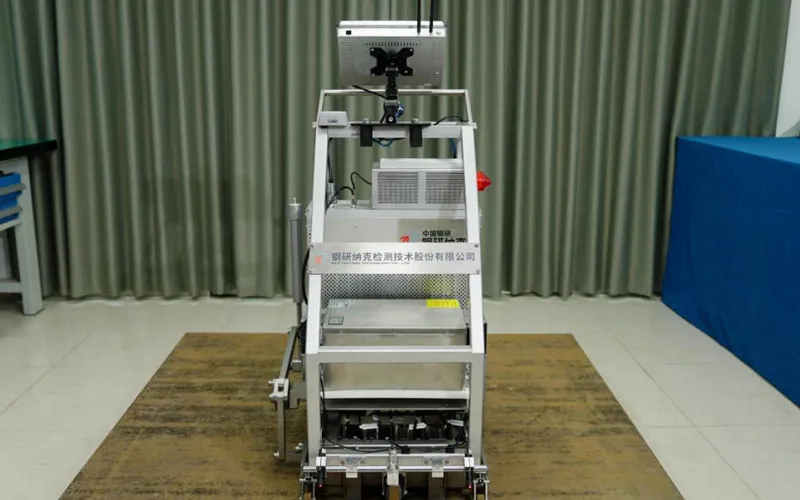

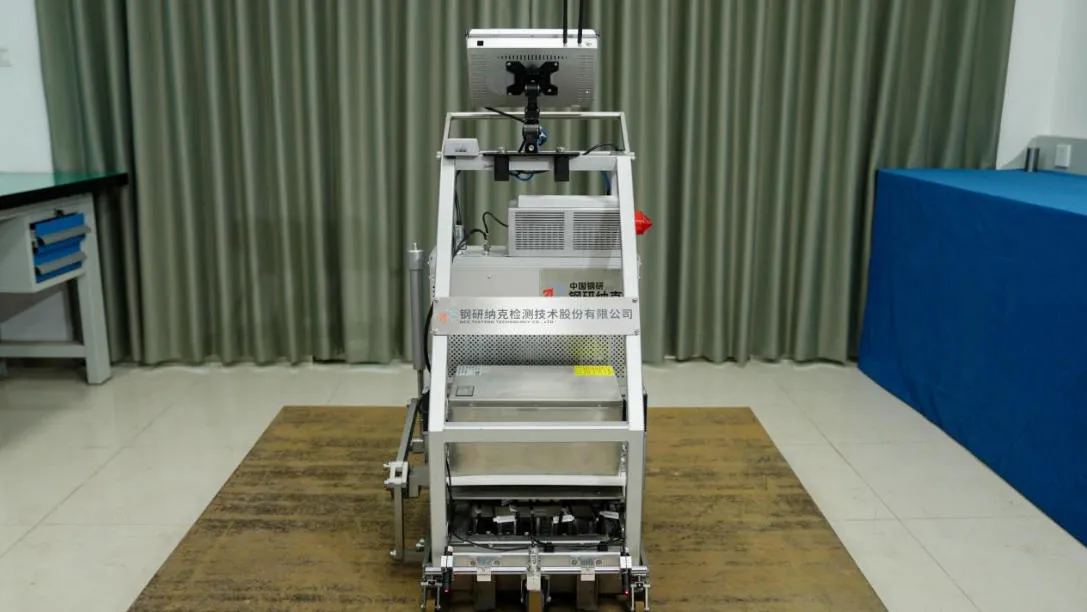

NCS-MMTI200 steel plate hard spot micro-magnetic NDT trolley system

The NCS-MMTI200 steel plate hard spot micro-magnetic NDT trolley system, developed by NCS Testing Technology, has already been put into service at a major domestic steel plant.

Uneven hardness in steel plates leads to unstable strength and reduced load-bearing capacity. Conventional methods are neither fast nor capable of full-coverage hardness inspection. To solve this problem, our second-generation trolley system provides non‑destructive quantitative evaluation of steel plate surface hardness.

Ease of Operation

Steel body with lithium battery power supply – reasonable mechanical structure

Total weight: 50 kg

Maximum pushing speed: 1 m/s

Single charge operation: up to 8 hours

Easy to operate, flexible to move, and adapts to plates of different sizes and shapes – lowers skill requirements and training costs.

High Inspection Accuracy

Staggered probe arrangement: 8 probe groups / 32 channels

Inspection width: 320 mm (can be increased or reduced by adding/removing probes per customer request)

Laser alignment device prevents missing any area of the plate.

Strong Data Processing & Analysis

Calibrate the reference hardness value before inspection – values beyond a defined range are flagged as excessive hardness.

Inspected areas are imaged on a tablet in real time. Red areas indicate excessive hardness, and a side audible‑visual alarm is triggered.

User‑friendly interface with powerful software – fast analysis of inspection data, images saved for precise location of hard spots.

Offline Inspection Capability

Equipped with an offline inspection module and offline probe for POD testing – flexible inspection of steel plate samples.

Robust & Reliable in Industrial Environments

Hardware uses high‑quality, high‑stability materials and components.

Software has been extensively tested and optimized on site.

Strong anti‑interference performance – reduces environmental errors, ensures consistent and reliable results.

Customizable Modes

The hard spot inspection system can be tailored to your needs:

Trolley inspection mode (as described above)

Gantry scanning mode – steel plate fixed, gantry automatically scans

Fully automatic scanning system – steel plate moves linearly, probes fixed for full coverage.

With the NCS-MMTI200, you get stable, efficient, and accurate quality assurance for your steel plate production.
